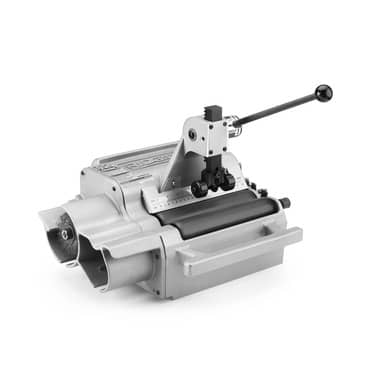

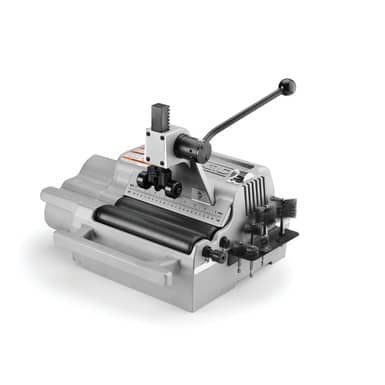

122 Cutting and Prep Machine
The RIDGID 122 (93492) Copper Cutting and Prep Machine with Accessory Set, 1/2 in. to 2 in. Capacity, 450 RPM, 115V, is designed to cut, clean, ream and deburr copper and stainless steel tubing and fittings quickly and professionally. Weighing only 50 lbs (23kg) and possessing a conveniently located carrying handle, the 122 is ideal for transport directly to the job site. The rugged cast aluminum housing and powerful 1/3 HP induction motor assure long life.
$2,173.99 $2,173.99
Out of stock
The RIDGID 122 (93492) Copper Cutting and Prep Machine with Accessory Set, 1/2 in. to 2 in. Capacity, 450 RPM, 115V, is designed to cut, clean, ream and deburr copper and stainless steel tubing and fittings quickly and professionally. Weighing only 50 lbs (23kg) and possessing a conveniently located carrying handle, the 122 is ideal for transport directly to the job site. The rugged cast aluminum housing and powerful 1/3 HP induction motor assure long life.

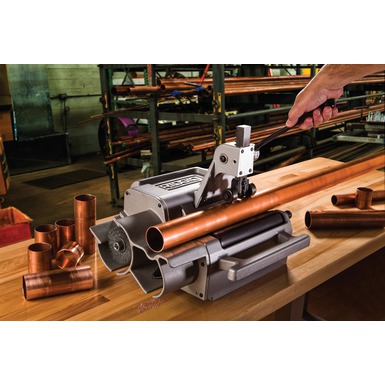

Cutting is performed by turning the tubing with motor-driven rollers while a cutter wheel is manually actuated by a rack and pinion. An adjustable cutting handle accommodates different diameter tubes and a scale is included for tube measurement. The reamer removes burrs from the inside of the tubing while the brush cleans the external surface in preparation for joining. The machine can also clean the inside of fittings using individually sized brushes that are attached to the quick-change adapter. The deburring disk cleans burrs from the outside surface of the tubing.
Please note that the 122 Copper Cutting and Prep Machine is not designed for use with pipe.
Details
The RIDGID 122 (93492) Copper Cutting and Prep Machine with Accessory Set, 1/2 in. to 2 in. Capacity, 450 RPM, 115V, is designed to cut, clean, ream and deburr copper and stainless steel tubing and fittings quickly and professionally. Weighing only 50 lbs (23kg) and possessing a conveniently located carrying handle, the 122 is ideal for transport directly to the job site. The rugged cast aluminum housing and powerful 1/3 HP induction motor assure long life.
Cutting is performed by turning the tubing with motor-driven rollers while a cutter wheel is manually actuated by a rack and pinion. An adjustable cutting handle accommodates different diameter tubes and a scale is included for tube measurement. The reamer removes burrs from the inside of the tubing while the brush cleans the external surface in preparation for joining. The machine can also clean the inside of fittings using individually sized brushes that are attached to the quick-change adapter. The deburring disk cleans burrs from the outside surface of the tubing.
Please note that the 122 Copper Cutting and Prep Machine is not designed for use with pipe.
Product Features
- Cut, cleans, reams, and deburrs copper and stainless steel tubing and fittings
- Powerful 1/3 HP induction motor drives rollers at 450 RPM
- Rugged O.D. cleaning brush cleans tubing quickly with minimal effort
- Core reamer easily removes turbulence-causing burrs
- Cutting handle adjusts to accommodate different tubing sizes
- Guide rollers ensure a straight cut with no tracking
- Built-in 1/2″ incremental scale allows for quick, easy measuring
- Easy to transport to job site with large carrying handle
- Cutter wheel tested to over 10,000 cuts
- Fitting brush kit includes six brushes, storage rack, and collet
- Approved by CSA to CSA and UL standards
Specifications
- Tube and fitting capacity: 1/2 in. to 2 in.
- Copper Tubes and Fittings: ASTM B88 Type K, L, M
- Stainless Steel Tubes: Max wall thickness up to 0.065″ (1.65 mm)
- Switch: Toggle On/Off
- Cutter Wheel: Model 2191 HD wheel
- Reamer: Single flute cone, RH, 1/2″ to 2″
- Motor: 1/3 HP, 115V, 60Hz induction motor
- Dimensions: 14.6 x 16.8 x 15.1 in.
- Weight: 50 lbs. (22.7 kg)
Includes
- 1 – Copper Cutting and Prep Machine 115V
- 1 – Model 11 Fitting Brush Storage Kit (93707), includes:
- 1 – Mountable Storage Rack
- 1 – Quick-Change Collet
- 1 – Spare Cutter Wheel
- 6 – Brushes (1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″)
- 1 – 2″ Reamer Cone Assembly (94687)
- 1 – O.D. Cleaning Brush (94682)
