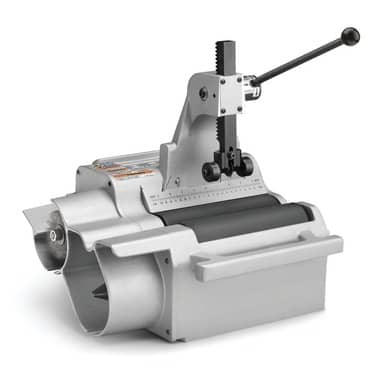

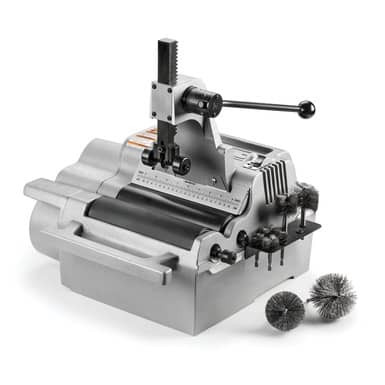

122XL Copper Cutting and Prep Machine
This pipe cutter is designed to cut, clean, ream and deburr copper and stainless steel tubing and fittings quickly and professionally. Weighing only 72 lbs. (32.7 kg) and possessing a conveniently located carrying handle, the Model 122XL is ideal for transport directly to the job site. Rugged cast aluminum housing and powerful 1/3 HP induction motor assures a long life.
Features
- Tube and fitting capacity: 1/2″ – 4″ (12 mm – 108 mm).
- Powerful 1/3 HP induction motor drives rollers at 300 RPM.
- Rugged O.D. cleaning brush cleans tubing quickly with minimal effort.
- Core reamer easily removes turbulence-causing burrs.
- Cutting handle adjusts to accommodate different tubing sizes.
- Large carrying handle for easy transport to the job site.
- Guide rollers ensure a straight cut with no tracking.
- Built-in 1/2″ – incremental scale for quick, easy measuring.
- Cutter wheel tested to over 10,000 cuts.
- Fitting brush kit includes six brushes, storage rack and collet.
- Approved to UL standards (NRTLC) (115V only).
- CSA approved (115V only).
Specifications
| Copper and stainless steel tube and fitting capacity |
1/2″ – 4″ (12 mm-108 mm) |
|
For ASTM B88 types K, L, M copper |
|
For stainless steel wall thickness up to .065″ (1.65 mm) |
| Switch |
Toggle on/off |
| Cutter Wheel |
Model 122 SS |
| Reamer |
Single flute cone, RH, 1/2″ to 2″ |
| Motor |
1/3 HP, 115V, 60Hz induction motor or 1/3 HP, 230V induction motor |
