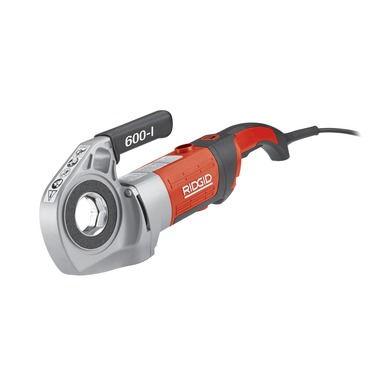

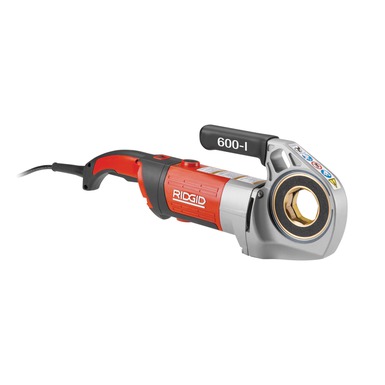

600-I Hand-Held Power Drive

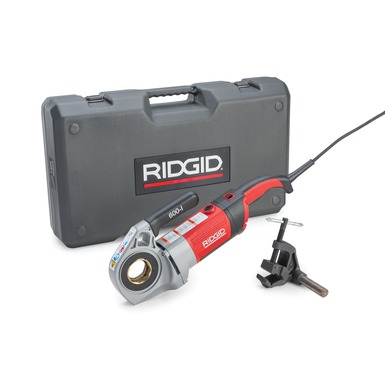

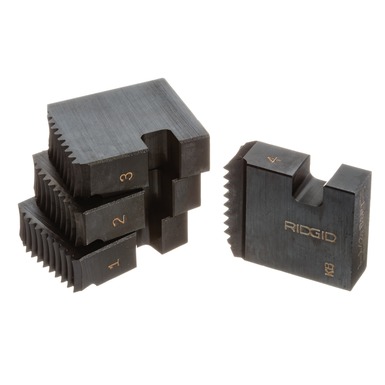

The RIDGID 600-I-NPT-KIT (44918) Hand-Held Power Drive for Pipe Threading, with 1/2″ to 1 1/4″ NPT Die Heads, 1/2 HP, 115V/12A, is a double insulated drive that provides power for threading pipe and conduit. It is designed to use RIDGID 11-R Drop Head Die Heads (1/8 in. to 1 1/4 in. pipe). Forward and Reverse rotation can be selected with a slide switch, while ON/OFF is controlled by a two-step momentary contact switch.

Weighing only 12.7 lbs., the lightweight 600-I Power Drive is easy to handle during operation and service; the screw-in brush covers further reduce service time. It can withstand demanding jobsite conditions, since it is built with a durable die cast gear housing and fiberglass reinforced plastic body. The dual “V” jaw support arm firmly prevents slipping, while the over molded handle and contoured grip provide optimal control.

Features

Lightweight and easy to handle for service and repair.
Over molded handle and contoured grip provide optimal control.
Screw-in brush covers reduce service time.
Durable die cast gear housing and fiberglass reinforced plastic body to withstand demanding jobsite conditions.

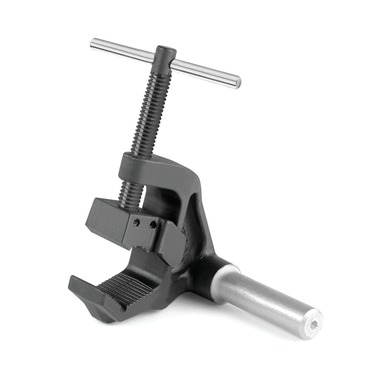

Dual “V” Jaw Support Arm firmly prevents slipping.

Specifications

Capacity	1/8″-1-1/4″ (3mm – 32mm) 11 R Die Heads.
Motor	1270 Watt, Single Phase, Universal Motor
Weight	12.7 lbs. (5.8 kg), Power Drive only.
Size	20 in. (508 mm) L x 3.75 in. (95 mm) W x 7.50 in (191 mm) H.
Controls	Forward/reverse slide switch. On/off two-step momentary contact.
Gear Head	Die cast aluminum permanently greased.
Body & Handle	Durable heavy-duty fiberglass reinforced plastic.
