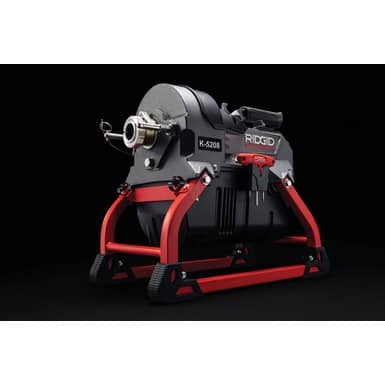

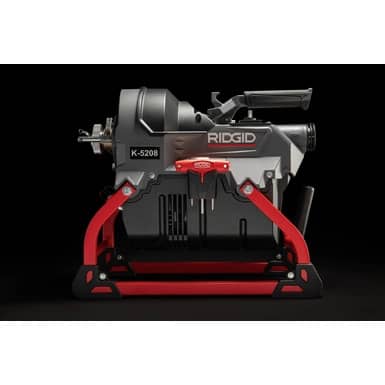

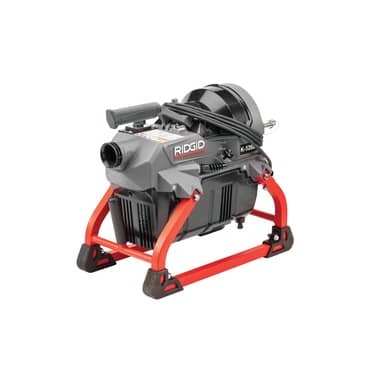

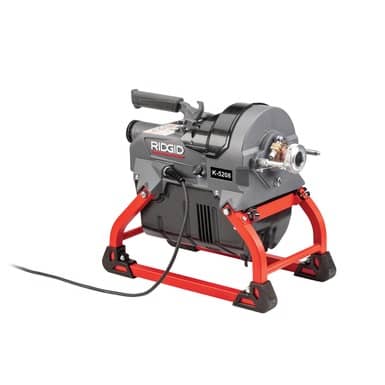

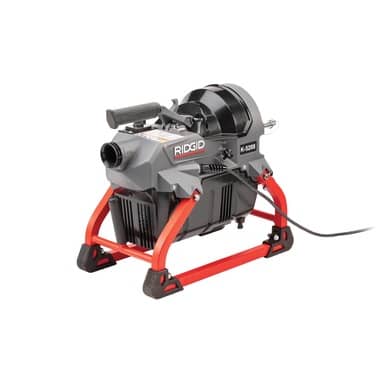

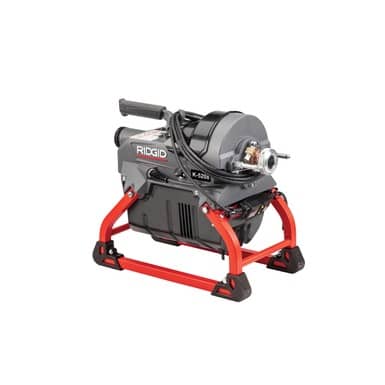

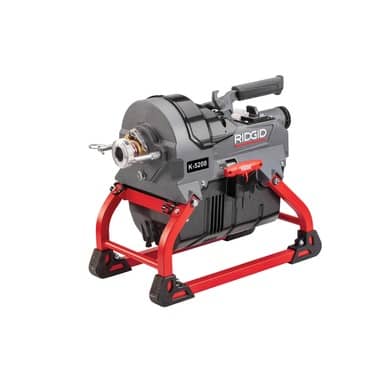

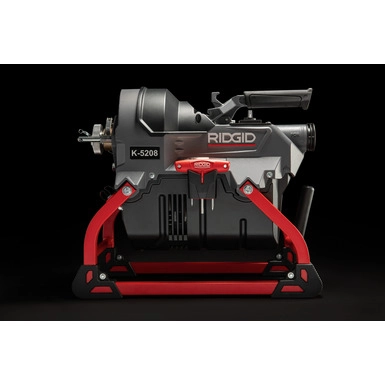

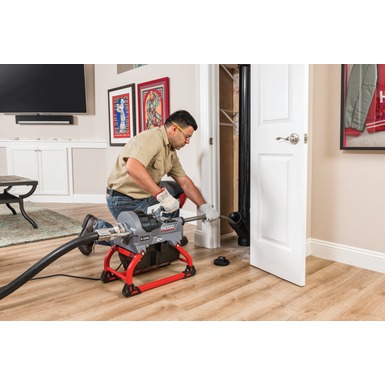

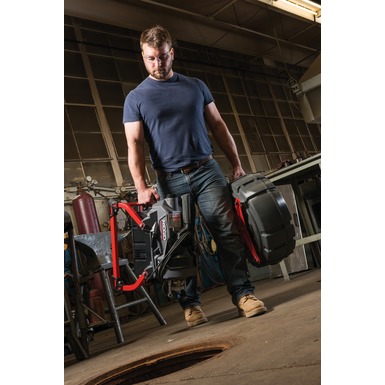

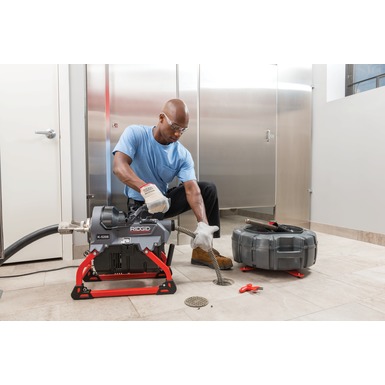

K-5208 Sectional Machine

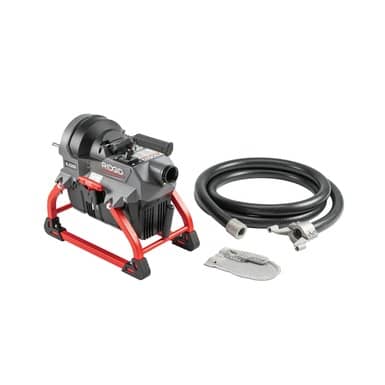

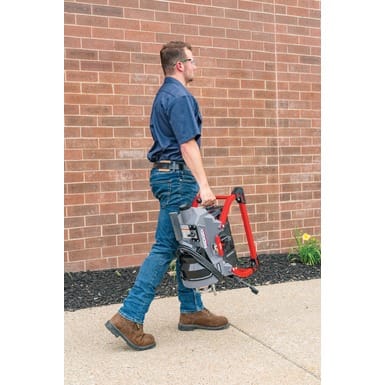

The RIDGID K-5208 (61688) Sectional Drain Cleaning Machine for 2 in. to 8 in. Lines, with A-34-15 Rear Guide Hose, 115V 60Hz, is the most powerful and compact sectional drain cleaner on the market. Power meets portability, as this machine is 35% lighter and 71% smaller than previous RIDGID sectional drain cleaners.

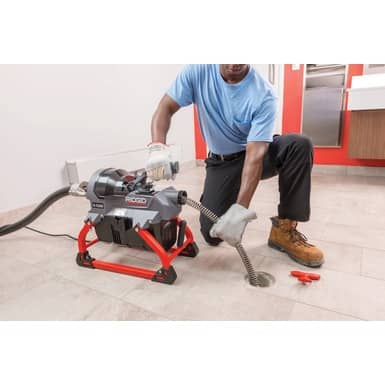

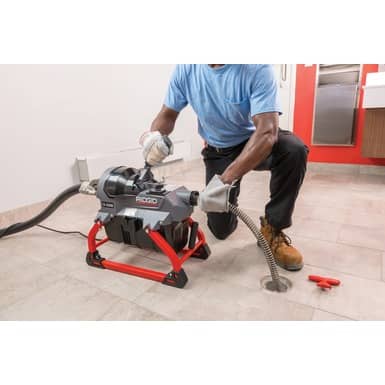

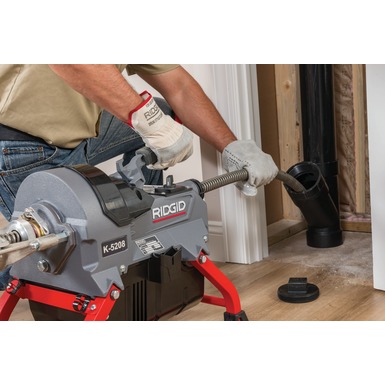

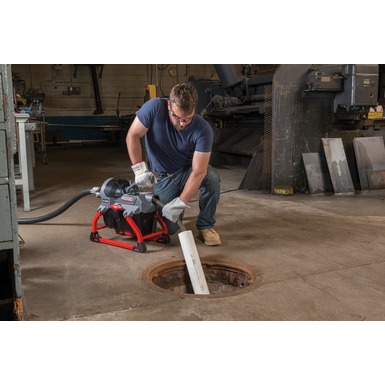

The RIDGID K-5208 Drain Cleaning machine is designed to clean 2″ (50mm) to 8″ (200mm) drain lines and up to 200 feet in length depending on size of cable. Applications include laterals, main lines, commercial lines.

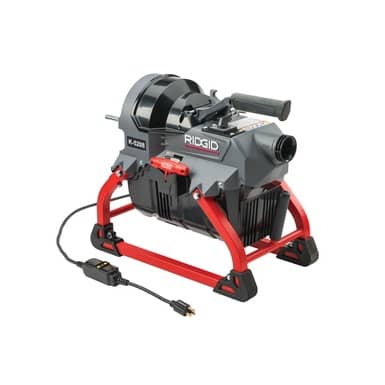

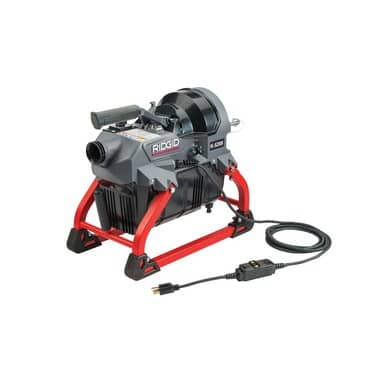

A FOR/O-OFF/REV switch controls cable rotation and provides ON/O-OFF control of the motor. An integral Ground Fault Circuit Interrupter (GFCI) is built into the line cord.

The K-5208 is designed to use 7/8″ and 1 1/4″ diameter sectional-type cable, having a quick-change coupling system for connecting and disconnecting cables and tools. The cable is manually fed in and out of the drain and rotates at a speed of 700 RPM.

The rotation of the cable is controlled by a clutch lever handle. The cable stops instantly when the clutch lever handle is released.

Features

The most powerful and compact sectional drain cleaner on the market.
Tool-less clutch can quickly adjust to accommodate 7/8” (22 mm) cable up to 175’ (53 m) or 1 ¼” (32 mm) cable up to 200’ (61 mm).

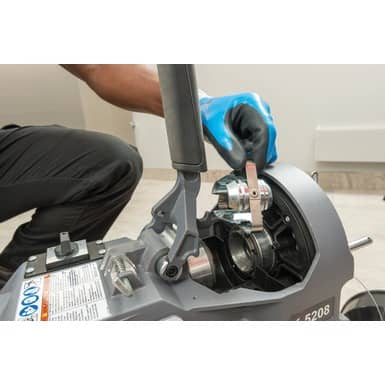

Efficient in-field clutch serviceability to minimize down time when maintenance is needed.
Innovative fluid management for a cleaner work environment.
Square steel tubing for enhanced strength and durability.

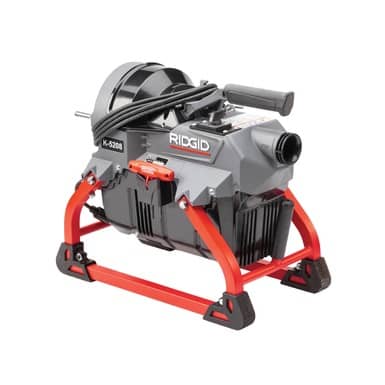

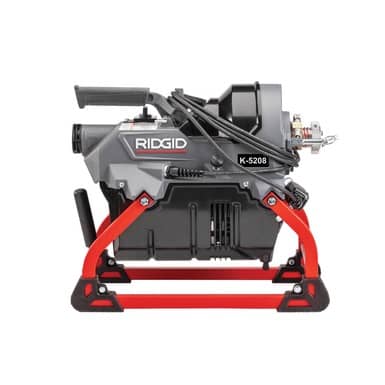

Quick-dump cord management for a quicker start-up.

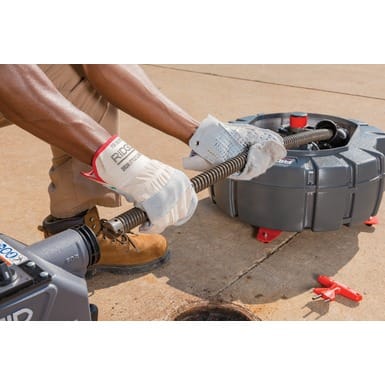

Sectional cable carrier improves loading and unloading cables while delivering a cleaner solution.
Trident Cable Decoupler speeds up the process of disconnecting cables.

Specifications

Drain Capacity	2″ – 8″ (50 – 200 mm)
Cable Size	7/8″ (22 mm) & 1-1/4″ (32 mm)
Unit Weight	55 lbs
Operating Speed	700 RPM
Motor Output	3/4 HP (1248W)

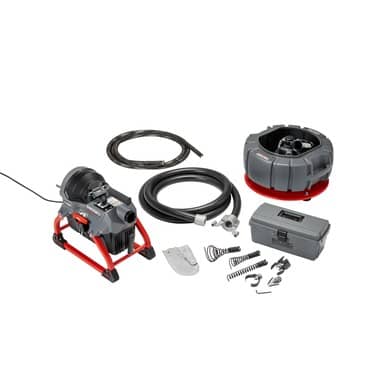

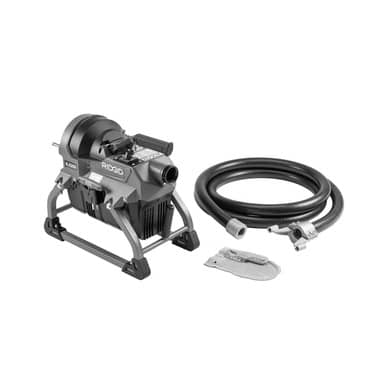

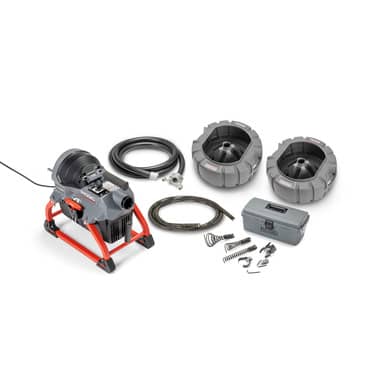

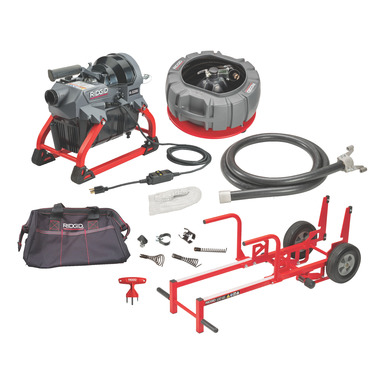

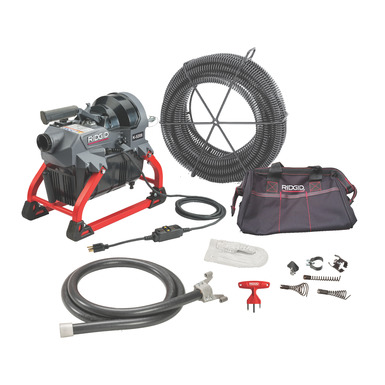

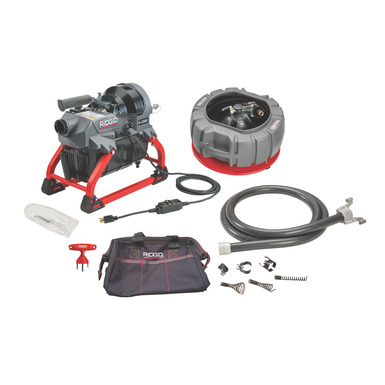

Included Standard	Mitt, Guide Hose, Decoupler
