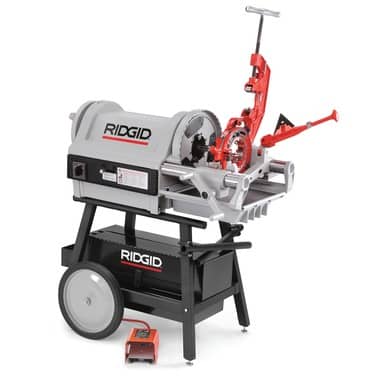

The RIDGID 1224-NPT-711-714 (26092) Hammer Chuck Pipe Threading Machine with 711 and 714 Die Heads, 1/2″ to 4″ NPT, 12/36 RPM, 1 1/2 HP, 120V/15A, is an electric motor-driven machine that centers and chucks pipe, as well as conduit and bolt stock, and rotates it while cutting, reaming and threading operations are performed. The 1224 threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C. Threading dies are mounted in a variety of available die heads (models 911 and 914 included). An integral oiling system is provided to flood the work with thread cutting oil during the threading operation.
With proper optional equipment, the 1224 Threading Machine can be used to thread larger pipe, short or close nipples, or for roll grooving. The 1224 machine can also be used to cut standard grooves on pipes and to cut or strip the saran and plastic lined pipes.
Features
- An induction motor helps minimize noise.
- A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced.
- 1/4″-2″ Universal Die Head; 2 1/2″-4″ receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads.
- Constant and proper lubrication of dies and workpiece with through-head oiling.
Specifications
| Nominal Pipe Capacity |
1/4″-2″ (6mm-100mm) @ 36 RPM, 2-1/2″-4″ (65mm-100mm) @ 12 RPM, 4″-6″ (100mm-150mm) with 161 Geared Threader. |
| Bolt Capacity |
1/4″-2″ (6mm-50mm). |
| Motor Control |
Reverse/off/forward, heavy-duty rotary-type and integral foot switch. |
| Gear Box |
Two-speed gear box with a 3:1 ratio. |
| Chuck |
Hammer-type with replaceable rocker-action jaw inserts. |
| Rear Centering Device |
Cam action. |
| Oiling Pump |
Self-priming, gerotor-type, automatic-reversing, constant-flow. |
| Oiling |
Through die head |
