Pipe Beveling

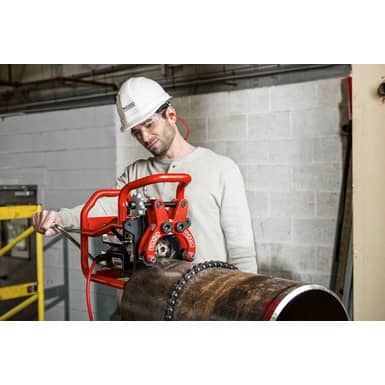

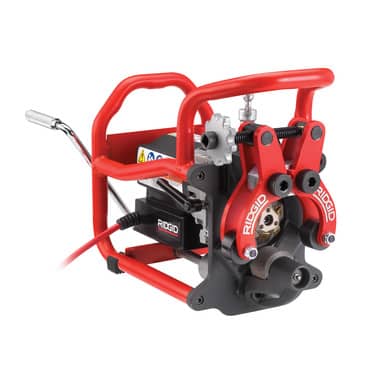

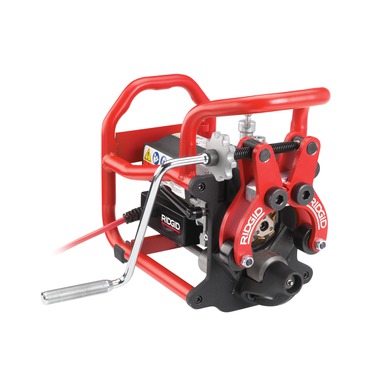

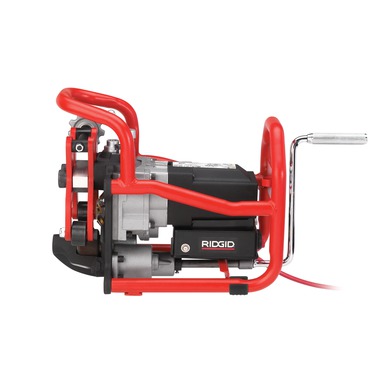

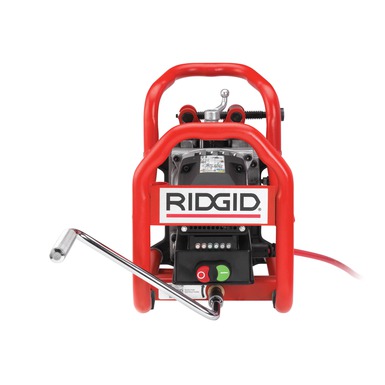

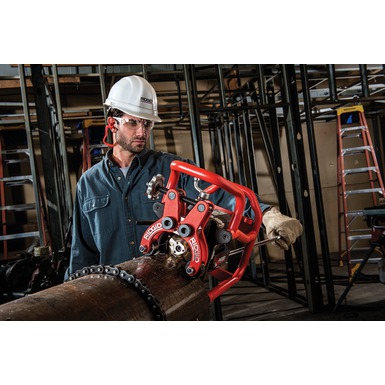

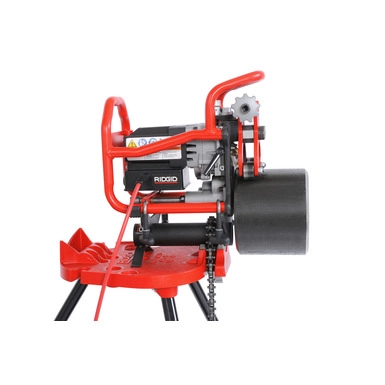

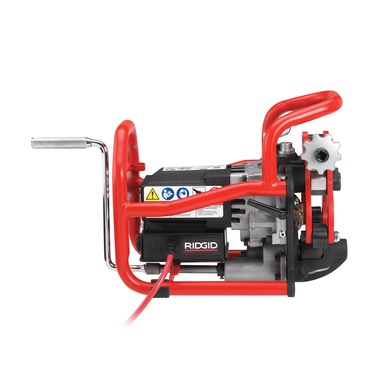

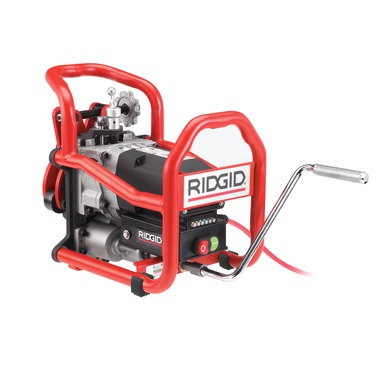

The B-500 Transportable Pipe Beveller produces high quality bevels in 45 seconds* without flames or sparks. The compact design quickly mounts to pipe 4” and up with a maximum wall thickness of 1/2”, and creates consistent bevels in a single pass.Get reliable results every time with RIDGID’s portable B-500 Pipe Beveller. Accurately bevel pipes in as little as 45 seconds without flames or sparks. Produces a machined finish due to 6 replaceable cutter inserts working simultaneously.

Features

Speed

Set-up and bevel 10″ diameter schedule 40 pipe in 45 seconds!
Pipe is cool to touch immediately following bevelling.

Consistency

Accurate bevel angle around diameter of the pipe allows for optimal number of cover passes.
Adjustable land width from 0″ to 3/16″ to fit welders’ requirements.

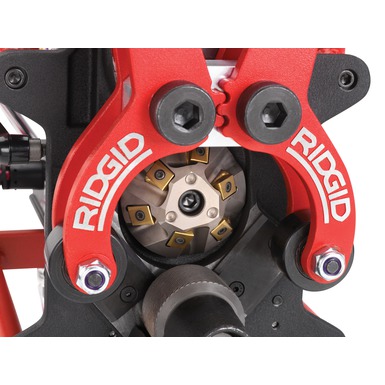

Produces a machined finish due to 6 replaceable cutter inserts working simultaneously.

Simplicity

Fast to set-up and operate.
Patent-pending clamp system firmly secures tool to the pipe.

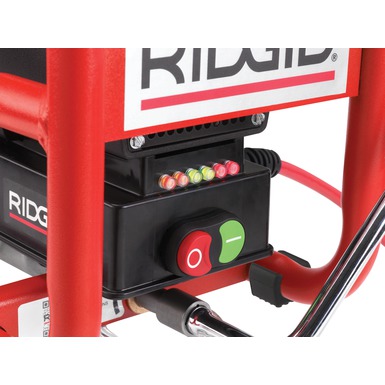

Speed monitoring with led indicators for optimal cutter performance.
Grinding spark free operation.
Adjustable at 1/32″ increments

Specifications

Capacity	4” pipe and larger, flat plate.
Pipe Wall/ Plate Thickness	Min 0.188″ (4.8 mm)/Max 0.50″ (12.7 mm).
Models Equipped with –	37.5°; 30° or 45° (with Optional Cutter Heads).
Cutter Head	Rated for most steel & stainless steel*.
Size	15.8 in. (401 mm) L x 11.5 in. (292 mm) W x 13.3 in. (338 mm) H.
Land Width	0″ – 3/16″ (4.8 mm) in approximately 1/32″ (0.8 mm) increments.
Motor Type	Universal single-phase.
Motor RPM	950 (no load).
Body	Steel frame
	* Beveller cutting head and inserts are optimized for standard A53 mild steel pipe. Reduced insert life can be expected on other materials.
