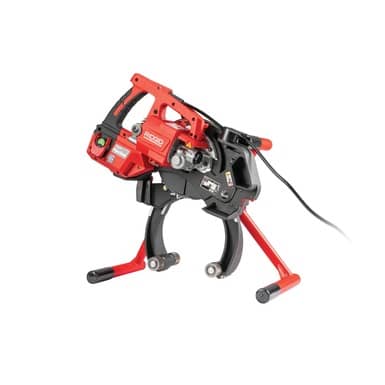

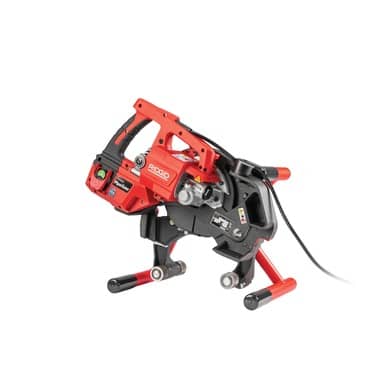

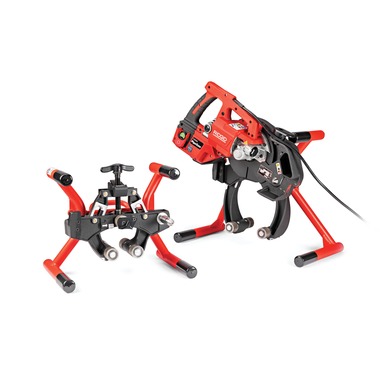

PC-106 + PCS-500 Pipe Saw Kit with Cutting Head and 1" to 6" Clamp

The RIDGID PC-106 + PCS-500 (66388) Pipe Saw Kit cuts pipe fast and efficiently. From the fab shop to the field, this tool delivers quality cuts on 1″ to 12″ pipe (6″ to 12″ clamp sold separately). The tool secures onto the pipe in seconds, making setup and operation a breeze. Fast and easy to use, the Pipe Saw lets you focus on the tasks that require more time and effort.

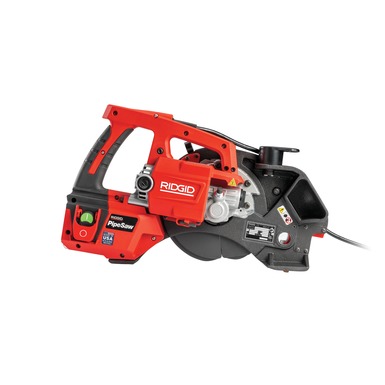

The RIDGID PCS-500 Pipe Saw is designed to clamp on the pipe and create a square cut. The saw can cut steel, stainless steel, plastic and cast iron pipes with the correct saw blade selection.

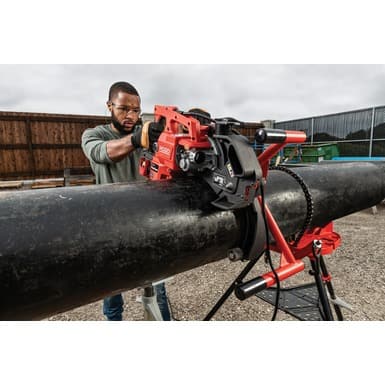

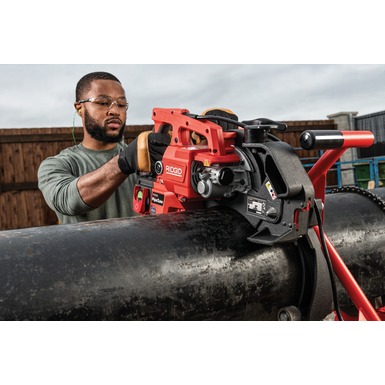

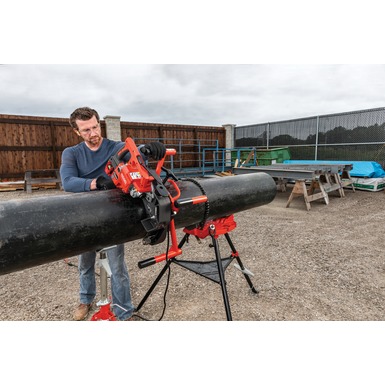

The clamps securely grip the work piece between clamp wheels, and then the PCS-500 Pipe Saw is mounted on the clamp. The cut is formed by rotating the saw around the stationary pipe.

LED indicator lights are supplied to give feedback on proper cutting speed. LEDs are normally OFF and flash to indicate that the pipe is being cut too quickly.

The Pipe Saw is lightweight and compact for ease of transport.

The saw is not designed to cut bars and plates. The pipe saw and clamp must be used together. The Pipe Saw is only meant to be used with pipe on stands, and is not designed for use with in-place pipe.

Details

The RIDGID PCS-500 Pipe Saw is designed to clamp on the pipe and create a square cut. The saw can cut steel, stainless steel, plastic and cast iron pipes with the correct saw blade selection.

The clamps securely grip the work piece between clamp wheels, and then the PCS-500 Pipe Saw is mounted on the clamp. The cut is formed by rotating the saw around the stationary pipe.

LED indicator lights are supplied to give feedback on proper cutting speed. LEDs are normally OFF and flash to indicate that the pipe is being cut too quickly.

The Pipe Saw is lightweight and compact for ease of transport.

Product Features

Interchangeable cutting head cuts up to 12 in. pipe with a 1/2 in. wall thickness

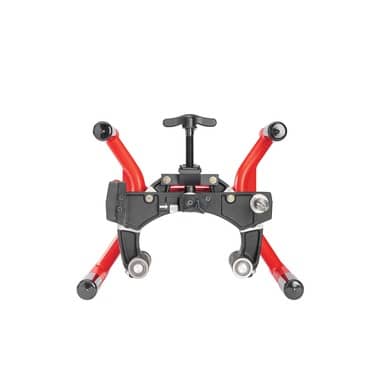

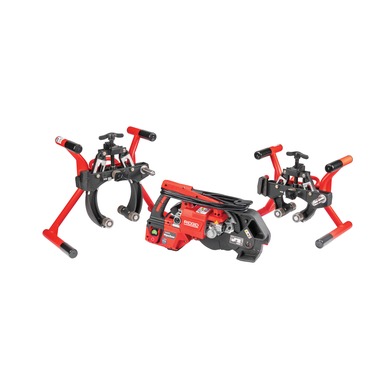

Compatible with two clamp sizes: 1″ to 6″ (included) and 6″ to 12″ (sold separately)
Powerful motor and rugged blades easily cut through carbon steel, stainless steel (standard blade), plastic, cast iron and ductile iron (optional blades)
Cuts through 10″ Schedule 40 pipe in just over a minute
Mounts in seconds with quick adjustment features and integrated alignment pad
Pivot plunge design and speed monitoring with LED indicators for optimal feed control
3-point roller system with one directional bearings secures to pipe, ensuring quality cuts
Conveniently placed handlebars allow for easy, comfortable and controlled rotation
Equipped with integrated handle and dedicated cord wraps

Specifications

Nominal Cutting Capacity:
- Small Clamp (included): 1 to 6 in. (50 to 150 mm)

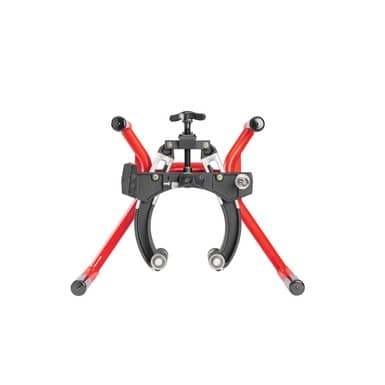

- Large Clamp (sold separately): 6 to 12 in. (150 to 300 mm)
Maximum Wall Capacity: 1/2 in. (12 mm); For Plastic Only: 0.70 in. (18 mm)
Pipe Material: Steel, Stainless Steel, Plastic, Cast Iron (depends on blade selection)
Cut Quality (Max. Offset): 0.050 in. (1.27 mm)
Minimum Cut-off Length: 1 in. (25 mm) (Pipe Saw not for facing pipe end)
Saw Blade Type: 8 in. Outside Diameter with 5/8 in. Round Arbor
Motor:
- Power: 1800 W
- Voltage: 110V – 120V AC
- Current: 15 Amp
